Pipe Fittings

  •
    Read More

    Plastic Tube Insulator

    Description:
    As one of the most competitive hangers of company, our plastic tube insulators are UPC approved. And they have received a great of popularity around the world, especially in North America. Also, their ribs allow pipe to glide easier and more silently when the pipe expands and contracts.



    Features:
    · Ribs Allows Pipe To Glide Easier And More Silently When The Pipe Expands And Contracts
    · Split Design Allows For Use After Piping Run
    · V-Shaped Notch Makes lt Easier To Snap Onto Tube
    · 1/2″ ,3/4″And 1″ Are Available
    · UPC Approval
  •
    Read More

    Plastic Full Clamp

    Description:
    As one of the most competitive hangers of company, our plastic full clamps are easy to install. And they have received a great of popularity around the world, especially in North America. Also, they provide the most affordable solution to keeping tube off the mounting surface.



    Features:
    •    The Most Affordable Solution To Keeping Tube Off The Mounting Surface
    •    Easy Installation
    •    Snaps Onto Tube For Hand Free Installation
    •    Preloaded Ring Shank Nail Assures A Permanent Hold
    •    1/2″, 3/4″ And 1″ Are Available
  •
    Read More

    Plastic Half Clamp

    Description:
    As one of the most competitive hangers of company, our plastic half clamps are UPC approved. And they have received a great of popularity around the world, especially in North America. Also, the installation is fast and easy.



    Features:
    · The Most Affordable Solution To Keeping Tube Off The Mounting Surtace
    · Installation Is Fast And Easy; Snaps Onto Tube With Preloaded Nails Or Screws
    · Install In Alternating Directions To Ensure Secure Piping
    · 1/2″ , 3/4″ And 1″ Are Available
    · UPC Approval
  •
    Read More

    Copper Plated Cast Iron Pipe Clamp

    Description:
    As one of the most competitive hangers of company, our forged cast iron pipe clamps are designed for suspension of copper tubing. And they have received a great of popularity around the world, especially in North America. Also, there are different surface treatments for your choice: Pre-galvanized, Zinc plated, epoxy and Green galvanized finish to meet your different levels’ anticorrosion needs.



    Features:
    · Material: Malleable Cast lron
    · Finish: Electro Zinc-Plated
    · Size Range: 1/2″ through 2″
    · For Use with 3/8 All Thread Rod
    · For Suspension Of Copper Tubing
  •
    Read More

    Screw-In Clamp (Assembly)

    Description:
    As one of the most competitive hangers of company, our screw-in clamps with rubber are used for mounting of pipes to the walls, ceilings and floors. And they have received a great of popularity around the world, especially in Europe, Middle East and Asia. Also, EPDM rubber insulation is designed for noise reduction and vibration reduction.



    Features:
    · Used For Mounting Of Pipes To The Walls (Vertical/Horizontal) Ceilings And Floors
    · Material: Steel
    · Finish: Electro Zinc-Plated
    · Size Ranger: 1/8″ through 2-1/2″
    · M6 Side Screws With Plastic Washer
    · Plastic Plug Should Be Used For Fixing
    · EPDM Rubber Insulation For Noise Reduction, Vibration Reduction
  •
    Read More

    Ventilation Pipe Clamp With Rubber

    Description:
    As one of the most competitive hangers of company, our ventilation pipe clamp with rubber are two-piece circular pipe clamps fastened together with a pair of steel bolts. They are used for suspending the spiral duct in the ventilation system. Our ventilation pipe clamps with rubber also have a quick locking system on one side from 80 to 400mm. And they have received a great of popularity around the world, especially in Europe, Middle East and Asia. Also, EPDM rubber insulation is designed for noise reduction and vibration reduction.



    Features:
    •    Two Screw Clamps
    •    With Quick Locking System
    •    Material: Steel
    •    Finish: Zinc-Plated Or Pre-Galvanized
    •    Noise Insulating Lining, EPDM Rubber, Black
  •
    Read More

    Wire Pipe Hook

    Description:
    Our wire pipe hook is a simple and cost-effective solution for supporting and suspending CTS (copper tube size) pipe from wooden beams. Each wire pipe hanger features sharpened, self-nailing ends for quick and easy installation. The heavy-gauge wire construction is ideal for suspending both copper and CPVC tubing, and it has a copper-clad finish that resists corrosion for long-lasting, reliable use. Our wire pipe hook delivers 6 inches of suspension and are available in sizes to accommodate 1/2″, 3/4″ and 1″ CTS tubing.



    Features:
    · Material: Steel
    · Size Range: 1/2″ Through 1″
    · Finish: Copper-Plated for corrosion resistance
    · Self-Nailing
    · Heavy Gauge wire construction for suspending copper & CPVC tubing
  •
    Read More

    Nail Hook

    Description:
    Our nail hooks are a stamped steel strap (J hook) which is nailed into studs to support tubing, pipe or E.M.T.



    Features:
    •    Material: Steel
    •    Finish: Copper-plated
    •    Nail Hook for 1/2″, 3/4″, 1″ CTS Pipe
  •
    Read More

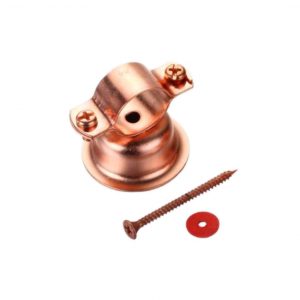

    Bell Hanger

    Description:
    Our Bell Hanger for copper tubing is a strong, neat, and light concealed screw hanger. It is designed for light duty support standoff of pipe or copper tubing from a wall or object. Bell Hanger provides 13/16 in. standoff. Bell Hanger includes 2-clamp screws and 1 mounting screw, which can penetrate metal studs.



    Features:
    · Suspending Stationary Non-Insulated Pipelines
    · Material: Steel
    · Size Range: 1/2″ Through 1″
    · Finish: Copper-Plated
    · Including Two Clamp Screws And One Mounting Screws
  •
    Read More

    DWV Pipe Hanger

    Description:
    Our galvanized DWV pipe hangers are ideal for hanging DWV pipe from overhead. The nail holes allow you to achieve the right length for your installation and allow for a quick installation.



    Features:
    · Material：Galvanized Steel
    · Size Range: 1-1/2″ Through 4″
    · Locking Screw Keeps Pipe Secure
    · Keyhole Design Provides Faster Installation
  •
    Read More

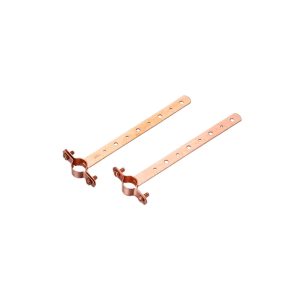

    Milford Hanger

    Description:
    Our milford hangers are designed to hang copper pipe from an object, with a top set plate swivels and locks into place.



    Features:
     · Used To Hang Copper Pipe From An Object
     · Material: Steel
     · Size Range: 1/2″ Through 3/4″
     · Finish: Copper-Plated
  •
    Read More

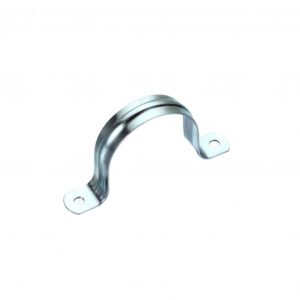

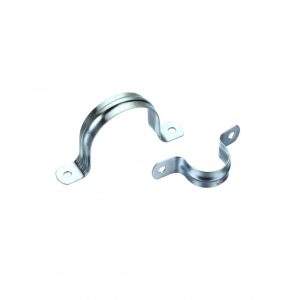

    Light Duty U-Strap

    Description:
    Our U-Straps are made of zinc plated steel with two holes and can be fast and simple fixed through two screws. There is a central nerve that strengthens the pipe clamp. It is ideal for fastening light duty rigid or IMC conduit to wood, masonry or similar surfaces where greater load bearing is required.



    Features:
    •    Material: Steel
    •    Size Range: 3/8″ Through 2″
    •    Finish: Electro-zinc Plated
