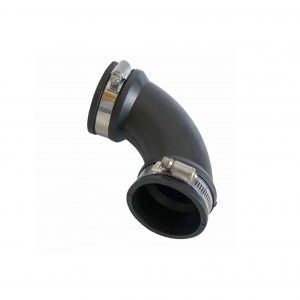

PVC Flexible Elbow
Description:- Our flexible Qwik Elbows allow up to 90º connections of all common household drain, waste and vent pipes quickly and easily without using special tools or fittings. Because they’re exceptionally flexible and long, they’re the ideal replacement for fittings at the joint during alteration or repair. Reducing sizes are made with separately supplied Qwik Bushings.
- Features:
- Creates elbow and 90º
- Length allows cut-out fittings
- Flexibility results in easy installations
- Reducing is possible with insert Qwik Bushing
- 300 series stainless steel clamps
- For use with Cast Iron, Plastic, Steel, Copper or Lead pipe
- Leak-proof, rot-proof and resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases
- Conforms to ASTM D5926
- Designed for above ground drain, waste, and vent use only
- Do not use in pressure applications
- Maximum operating temperature: 140º F non-consistent
-

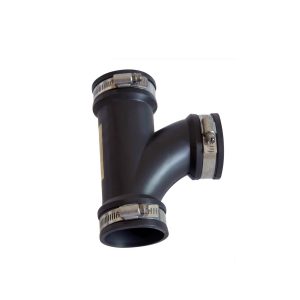

Quick Flexible PVC DWV Tee
Description:- Our flexible Qwik Tees allow up to 90º connections of all common household drain, waste and vent pipes quickly and easily without using special tools or fittings. Because they’re exceptionally flexible and long, they’re the ideal replacement for fittings at the joint during alteration or repair. Reducing sizes are made with separately supplied Qwik Bushings.
- Features:
- Creates tee and 90º
- Length allows cut-out fittings
- Flexibility results in easy installations
- Reducing is possible with insert Qwik Bushing
- 300 series stainless steel clamps
- For use with Cast Iron, Plastic, Steel, Copper or Lead pipe
- Leak-proof, rot-proof and resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases
- Conforms to ASTM D5926
- Designed for above ground drain, waste, and vent use only
- Do not use in pressure applications
- Maximum operating temperature: 140º F non-consistent
-

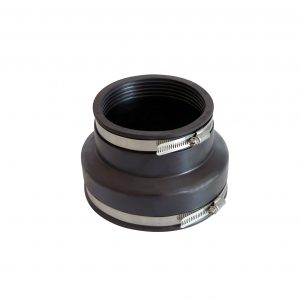

Reducing Flexible Pipe Coupling
Description:- Made of a tough elastomeric PVC compound that meets the requirements of ASTM No. D5926, are resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases. Stainless steel clamps are corrosion-resistant and rust-proof. For use in sewer and drain, water, and vent piping. Clay to Cast iron or plastic.
- Features:
- Flexible PVC construction
- 300-series stainless-steel clamps resist corrosion and offer efficient seals
- For sewer and DWV piping
- Compatible with cast iron, plastic, copper, lead and steel piping
- Provides positive seals for drain connections
- Mechanical connection type
- Underground rated
- Maximum working pressure of 4.3 psi
- Resists chemicals, ultraviolet rays and fungus growth
- Band slots for great flexibility
- Fast and easy installation with a screwdriver, nut driver or socket wrench (sold separately)
-

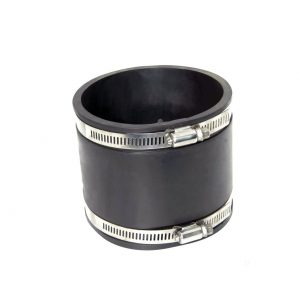

Plastic Flexible Coupling
Description:- The flexible coupling ensures leak-proof pipe seals on almost any pipe material: plastic, cast iron, asbestos cement, clay, concrete, steel, copper and ductile iron. Offering 300 series stainless-steel clamps, this coupling is leak-proof, root-proof and resistant to many chemicals, ultraviolet rays, fungus growth, and normal sewer gas. Fast and easy installation.The coupling resists constant temperatures from -34 to +40°C. It can briefly resist temperatures up to 60°C (2-3 minutes).
- Features:
- Flexible PVC construction
- 300-series stainless-steel clamps resist corrosion and offer efficient seals
- For sewer and DWV piping
- Compatible with cast iron, plastic, copper, lead and steel piping
- Provides positive seals for drain connections
- Mechanical connection type
- Underground rated
- Maximum working pressure of 4.3 psi
- Resists chemicals, ultraviolet rays and fungus growth
- Band slots for great flexibility
- Fast and easy installation with a screwdriver, nut driver or socket wrench (sold separately)
-

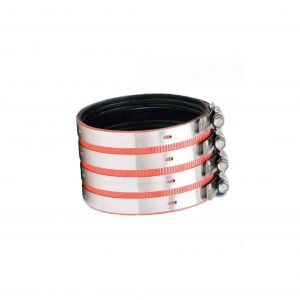

Heavy Duty No Hub Pipe Coupling
Description:- The No Hub Pipe Coupling has been engineered to provide a heavy-duty, all stainless steel coupling, balancing the desire for a more rigid joint with the need to provide a superior positive seal, which can accommodate possible disparities in the No-Hub pipe and fittings. This has been accomplished by manufacturing our coupling with a super-duty corrugated shield of sufficient width to accommodate additional surface-bearing sealing clamps.
- Features:
- Red shield – A distinctive red stainless steel shield easily identifies our heavy duty no hub couplings
- Mechanical interlocking clamp design – A one piece stainless steel screw housing mechanically interlocks the housing to the stainless steel band
- This one piece housing eliminates leak paths that can develop with welded or staked clamps
- Floating eyelet design – The stainless steel clamp bands can move independently from the corrugated stainless steel shield
- This independence prevents the shield from crimping during tightening which can lead to leaks
- 3/8 in Hex head screw – The stainless steel 3/8 in hex head screw is engineered to accept 80 in pounds of installation torque to ensure a secure band/shield assembly around the pipe/fittings
- Formed gasket design – The gasket is designed to form fit around the pipe and the inside of the shield so that when the clamping forces are applied, a superior sealing pressure and holding power is achieved
- The gaskets are made from neoprene which meets the requirements of ASTM C564
-

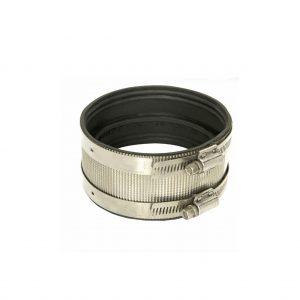

Standard No Hub Pipe Coupling
Description:- Standard No Hub Coupling- Engineered to connect no-hub cast iron pipe.
Choose the No-Hub Coupling with the patented shield design that provides maximum transfer of pressure from the clamps – to the gasket – to the pipe. Engineered to connect no-hub cast iron pipe in applications replacing the less-efficient hub and spigot.
- Features:
- 5/16″ hex-head screw applies 60 in.-lbs. of installation torque to the band/shield assembly.
- Standard No-Hub Couplings conform to CISPI 310. Couplings comply with ASTM C 1277. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C 564.
- Patented Bi-Directional Shield Design- The shield will adjust to variations in diameters and circumferences of the pipes being joined, thereby eliminating leak paths. The patented, bi-directional corrugations exert sealing pressure in both parallel and transverse patterns on the gasket and pipe, providing a positive, reliable seal.
- Specially Beaded Gasket- Made of an elastomeric compound that meets the requirements of ASTM C564 and features a series of strategically positioned grooves and beads. When tightened, the shield mates with these grooves and beads to exert exceptional sealing pressure and holding power to prevent “pull out” failures.
- Interlocking Clamp Design- The clamps feature a one-piece screw housing that mechanically interlocks the housing to the band. This one-piece housing design eliminates leak paths that can occur in staked or welded clamps.
- Floating Eyelet Design- Floating eyelets fasten the clamps to the shield, allowing the clamp band and shield to move independently. This freedom prevents the shield from crimping during tightening, which can lead to leakage later on.
-
Neoprene Shielded Coupling
Description:- Our neoprene shielded coupling provides a quick and easy connection. It can be used with cast-iron, plastic, steel and copper drain, waste and vent systems. The coupling is rated for above ground use applications only.
- Features:
- Neoprene gasket
- Designed for use with cast-iron, plastic, steel and copper drain, waste and vent systems
- Install using a torque wrench to ensure a water tight connection
- Rated for above ground applications only
- Maximum operating temperature of 180°F
- Tested to 4.3 maximum test pressure
-

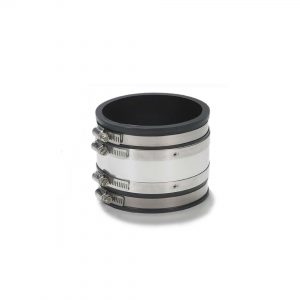

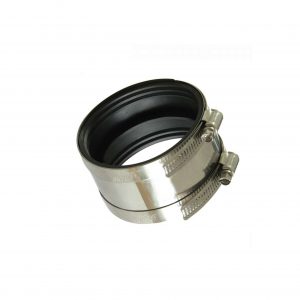

Flexible PVC Shielded Coupling
Description:- The Flexible PVC Coupling features a stainless-steel shield and molded-in bushing to provide extra rigidity. It provides a leak-free connection for clay, cast-iron, plastic, steel, copper and lead pipes. Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.Connection type is mechanical.
- Features:
- Made of flexible PVC to provide a leak-free connection for pipes of the same or different sizes and materials
- Stainless-steel bands, nuts and housings are corrosion resistant and rustproof
- Tested to 4.3 maximum test pressure
- Maximum consistent operating temperature of 120°F
- Underground rated
- Resists chemicals, ultraviolet rays and fungus growth
-

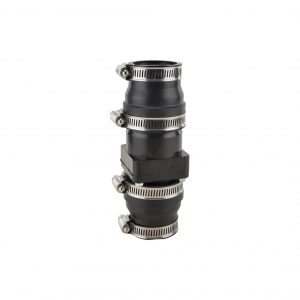

Sump Pump Check Valves
Description:- Reduces sump pump wear and tear.
Our Sump Pump Check Valves allow unrestricted water to flow through the pipes, but when the pump turns off, the water does not flow backwards into the sump pump, which would typically cause damage.
- Features:
- Full flow sealing flapper design
- Long-lasting
- Eliminates pump back-flow
- Durable thermoplastic design
- Flexible couplings can be flipped over to fit 1-1/4″ OR 1-1/2″ drain pipe
-

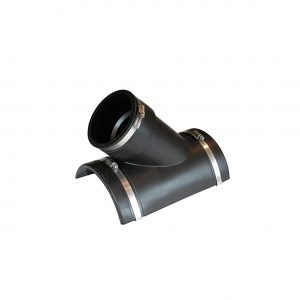

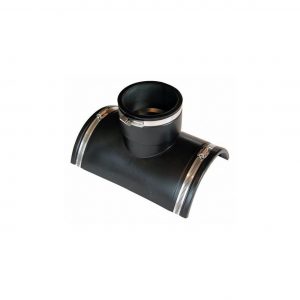

Flexible Tap Saddles
Description:- The faster & less costly way to make sewer main connections.
Our Flexible Tap Saddles provide a soil-tight seal. One Saddle will fit 4″ and 6″ and larger sewer mains. Available for all 4″ or 6″ plastic or cast iron drain pipe inlets in tee or wye configurations. Our Flexible Tap Saddles are designed to meet AIS standards – American Iron and Steel compliant with the Flexible Tap Saddles.- Features:
- Manufactured from a specially formulated high durometer PVC
- Rigid, yet flexible enough for sewer mains:
- 4” saddles fits 6” pipe and larger
- 6” saddles fit 8” pipe and larger
- Includes special “slip-lock” clamps of 300 series stainless steel that cause fast and simple installations on any type of pipe
- Larger apron with locating ring fits 5″ or 7″ standard shell cutters
- Large band grooves
- Root-proof and leak-proof
- Resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases
- Conforms to ASTM D5926
- Maximum operating temperature: 140º F non-consistent
- Flexible Tap Saddles are designed to meet AIS standards – American Iron and Steel compliant with the Flexible Tap Saddles.
-

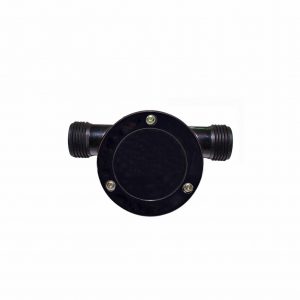

Drill Pump
Description:- This drill pump is designed for multiple purposes including, dishwashers, clogged sinks, washing machines, water heaters, hot tubs, and aquariums. It fits any electric drill and pumps 1000l of water per hour at 2000 rpm and can also be used to empty crankcase oil. The package includes the pump, garden hose fitting, flexible hose, hose clamp, adapter tube and oil probe.
- Features:
- Ideal for the transfer of liquids in different applications.
- To be used with a drill and standard garden hoses
- Corrosion Resistant Thermoplastic Construction
- Fits Standard ¼” or ½” Drill (Drill Not Included)
- Minimum drill speed of 1200 RPM allows the transfer of 225 G of water per hour.
- Self priming anti corrosion shaft
- NOT ideal for use with chemical products
- Customized Label is available
-

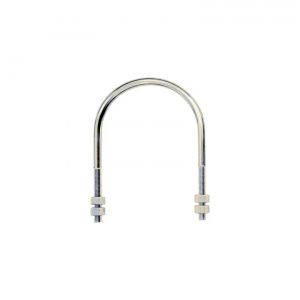

U-Bolt
Description:- U-bolt is a non-standard part. It is named after the shape of U-bolt. The two ends have threads which can be combined with nuts. They are also used to hold multiple ropes together. It is mainly used to fix tubular objects such as water pipes or sheet objects such as leaf springs of automobiles. U-bolts are widely used, mainly for building installation, mechanical parts connection, vehicle and ship, bridge, tunnel and railway, etc.The U-Bolts are made of Steel conforming to ASTM A 449 and are electrogalvanized.
- Features:
- Easy installation
- Dimensional accuracy
- Fine finish
- Smooth operation
- Sturdy design
- User friendly
Pipe Fittings
