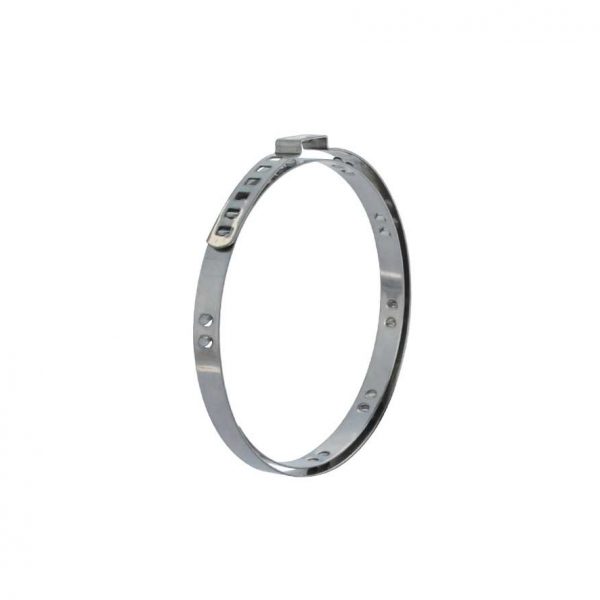

Adjustable Stepless Single-Ear Clamp
Description:- Our Single Ear Stepless Clamps are one of our high-tech products with a special design of “tongue in the guide slot”. Provides a uniform pressure and a seal in the 360 degree range. Therefore, the single ear clamping clamp is very suitable for lightweight, thin-walled hoses. Single ear clamps are widely used for soft and hard tube connection in the following industries: car (vehicle, drive shaft, steering gear, oil pump, plastic fuel tank, air conditioning, etc.), motorcycle, food beverage machinery, electrical, welding, fire control, architecture, machinery industries, etc.
- Features:
· The fine “tongue in the guide slot” provides a uniform seal in a smooth inner ring within 360 degrees.
· The strip steel with smooth edge does not damage the clamped hose.
· Light weight, strong small gap design.
· Material: stainless steel in accordance with UNS S30400 or DIN1.4301 standard
· Adjustable for different sizes.
- Technical Parameter
| Material: Stainless Steel | Surface Treatment: / |
| Connection: Flange | Structure: Vertical |
| Flexible or Rigid: Rigid | Size: 25mm-48mm, 60mm-120mm |
| Standard: WRN internal standard with reference to UL and FM standards. | |
