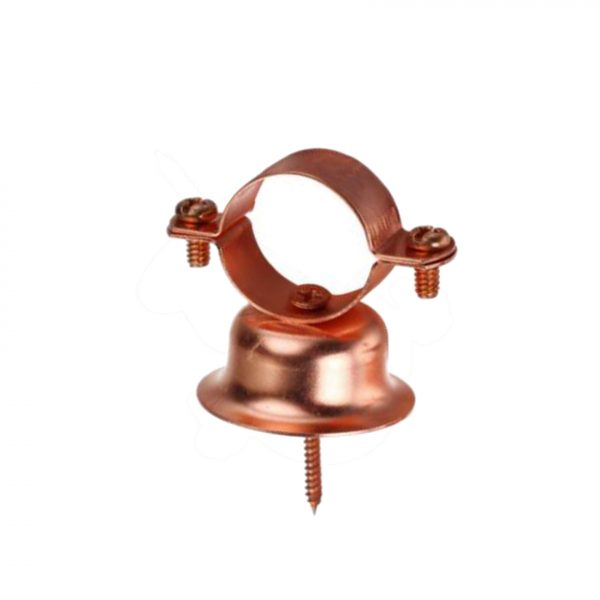

Bell Hanger (1)

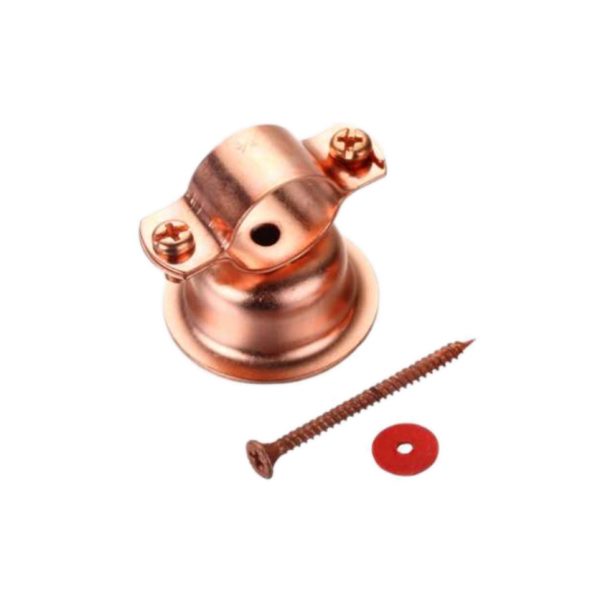

Bell Hanger (2)
Bell Hanger (1)
Bell Hanger (2)

Bell Hanger

DWV Pipe Hanger
Nail Hook

Description:
Our Bell Hanger for copper tubing is a strong, neat, and light concealed screw hanger. It is designed for light duty support standoff of pipe or copper tubing from a wall or object. Bell Hanger provides 13/16 in. standoff. Bell Hanger includes 2-clamp screws and 1 mounting screw, which can penetrate metal studs.



Features:
· Suspending Stationary Non-Insulated Pipelines
· Material: Steel
· Size Range: 1/2″ Through 1″
· Finish: Copper-Plated
· Including Two Clamp Screws And One Mounting Screws
Categories: ,
  • Technical Parameter



Material: SPCC Surface Treatment: Copper-Plated
Connection: Flange Structure: Vertical
Flexible or Rigid: Rigid Size: 1/2", 3/4" and 1"
Standard: WRN internal standard with reference to UPC standard.
