Products - Heavy Duty U-Strap With Rubber lining

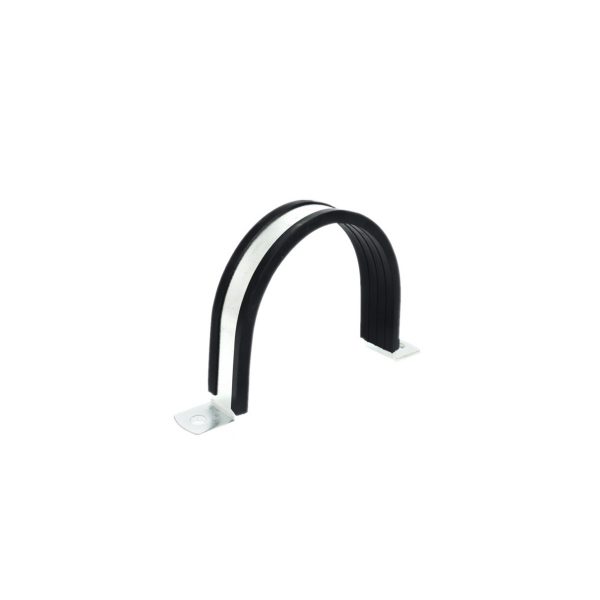

Heavy Duty U-Strap With Rubber lining


Description:
The U Strap Clamp that we provide is manufactured by utilizing Mild Steel Electro-galvanized material. EPDM rubber to insulate and soundproof DIN 4109. The U Strap Clamp is highly required for clamping of insulated and plain pipes to the supports like floor stands, trapeze hangers and wall brackets. It is mainly used for the installation of copper, steel and PVC pipes in columns.



Features:
  • For mounting plain or insulated pipes
  • EPDM lining for suppression of sound and vibrations.
  • Temperature range: -20°C to 110°C
  • Material: Mild Steel.
  • Electrogalvanized as per ASTM B 633 Standards.
  • Hot dipped galvanized and stainless-steel option can be provided on request.
  • M6 Side Screws With Two Pieces Of Gasket
Categories: ,
  • Technical Parameter



Material: SPCC or Stainless Steel Surface Treatment: Electro-Zinc Plated or Epoxy Coating
Connection: Flange Structure: Vertical
Flexible or Rigid: Rigid Size:  1/2" - 24"
Standard: Comply With Federal Specification WW-H-171E And American Manufactures Standardization Society MSS SP-69 & SP58
