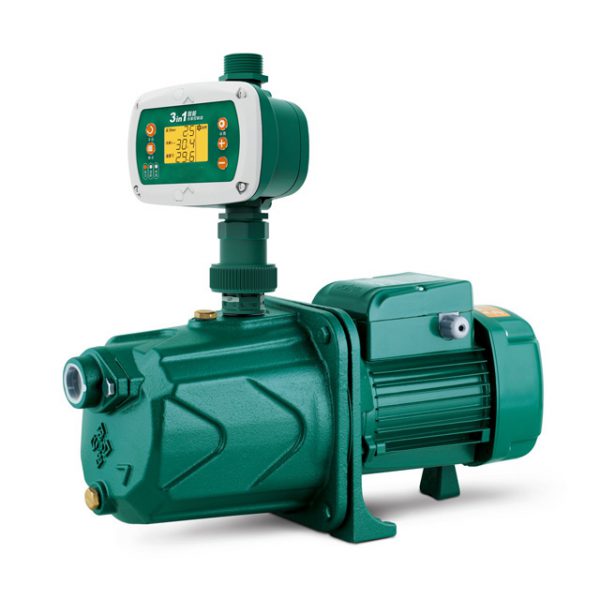

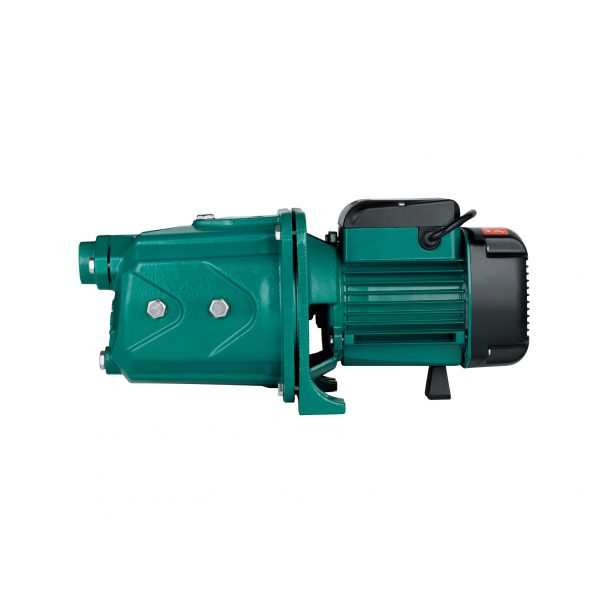

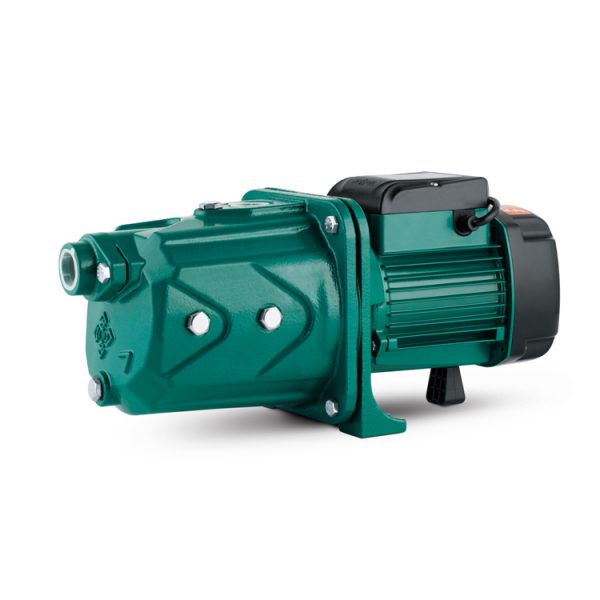

J Series Self-priming Jet Pump
- Applications
- Household water supply
Water supply system

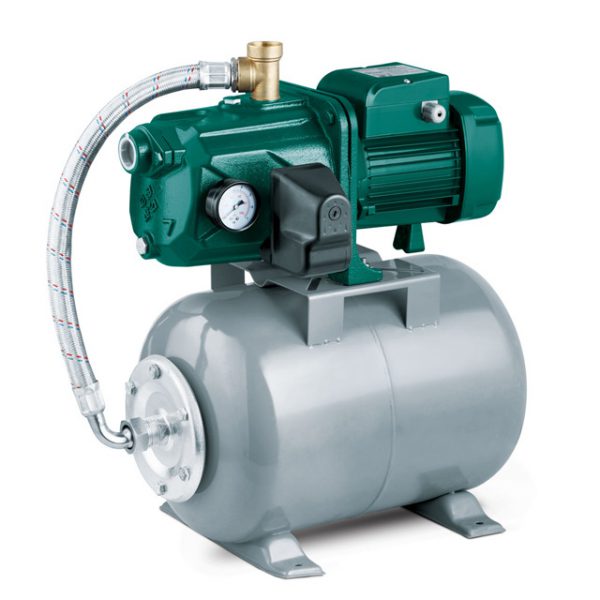

Boost system
- Working Range
- Liquid: clean liquids without
suspended
solids, non-aggressive
Liquid temperature: -10 °C and +90 °C
Ambient temperature up to +40 °C
Max. working pressure 10 bar
Continuous service S1
Insulation: B
Protection: IP 44
- Description
Description
Performance Data（n=2850 r/min)
| Model | Power | Current | Flow max | Head max | Inlet/outlet | Suct. Max | RPM | Optimal working point | |
| J300 | 0.4HP | 0.3kW | 2.5 A | 45 L/min | 32m | G1XG1 | 9m | 2850r/min | 25L/20m |
| J400 | 0.55HP | 0.4kW | 2.7 A | 60L/min | 36m | G1XG1 | 9m | 2850r/min | 40L/26m |
| J600 | 0.8HP | 0.6kW | 4.0 A | 62 L/min | 40m | G1XG1 | 9m | 2850r/min | 42L/28m |
| J750 | 1HP | 0.75kW | 5.2 A | 64L/min | 44m | G1XG1 | 9m | 2850r/min | 45L/30m |

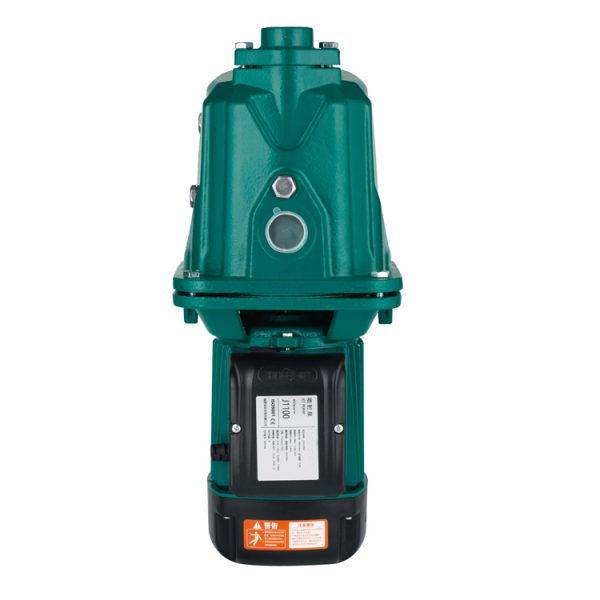

| J1100 | 1.5HP | 1.1kW | 7.0 A | 90 L/min | 54m | G1XG1 | 9m | 2850r/min | 40L/40m |
