Products - Light Duty U-Strap

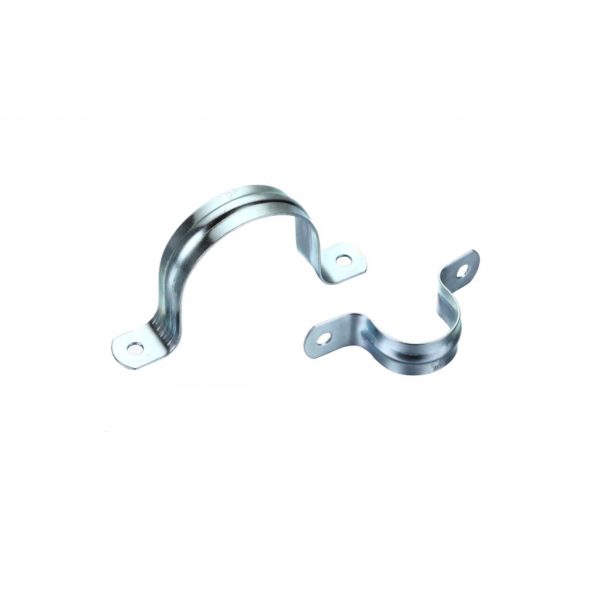

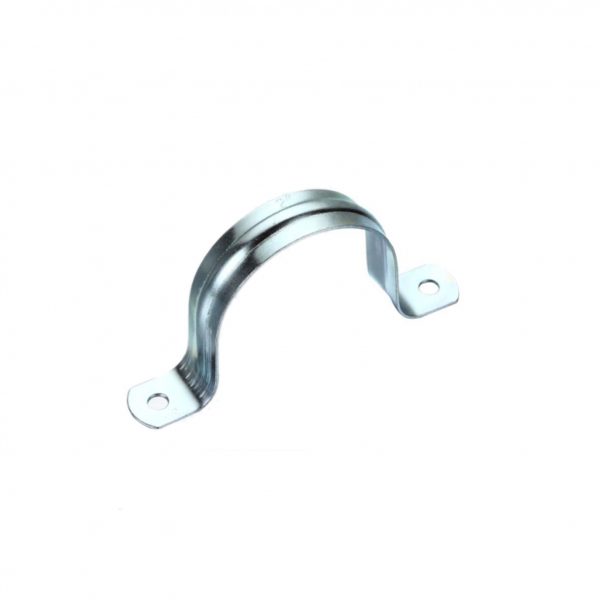

Light Duty U-Strap (1)
Light Duty U-Strap (2)
Light Duty U-Strap (1)
Light Duty U-Strap (2)

Light Duty U-Strap

Light Duty U-Strap (Copper Tubing)
Milford Hanger

Description:
Our U-Straps are made of zinc plated steel with two holes and can be fast and simple fixed through two screws. There is a central nerve that strengthens the pipe clamp. It is ideal for fastening light duty rigid or IMC conduit to wood, masonry or similar surfaces where greater load bearing is required.



Features:
•    Material: Steel
•    Size Range: 3/8″ Through 2″
•    Finish: Electro-zinc Plated
Categories: ,
  • Technical Parameter



Material: SPCC Surface Treatment: Zinc Plated
Connection: Flange Structure: Vertical
Flexible or Rigid: Rigid Size: 3/8" - 2"
Standard: WRN internal standard with reference to UPC standard.



Related Products

  •
    Read More

    Top Beam Clamp

    Description:
    Our top beam clamp has a malleable iron construction that is manufactured from hot rolled carbon steel with a zinc finish. It is designed for attaching hanger rod to mounting surfaces like the top flange of a beam or bar joist that is directly under roof installation. And they have received a great of popularity around the world, especially in North America, South America, Middle East, Europe and Asia. Also, there are different surface treatments for your choice: Pre-galvanized, Zinc plated, epoxy and Green galvanized finish to meet your different levels’ anticorrosion needs.



    Features:
    •    Material: Malleable Iron
    •    Finish: Zinc-plated
    •    Designed for Attaching a Hanger Rod to The Top or Bottom Flange of a Bar Joist or Other Structural Shapes
  •
    Read More

    Wire Pipe Hook

    Description:
    Our wire pipe hook is a simple and cost-effective solution for supporting and suspending CTS (copper tube size) pipe from wooden beams. Each wire pipe hanger features sharpened, self-nailing ends for quick and easy installation. The heavy-gauge wire construction is ideal for suspending both copper and CPVC tubing, and it has a copper-clad finish that resists corrosion for long-lasting, reliable use. Our wire pipe hook delivers 6 inches of suspension and are available in sizes to accommodate 1/2″, 3/4″ and 1″ CTS tubing.



    Features:
    · Material: Steel
    · Size Range: 1/2″ Through 1″
    · Finish: Copper-Plated for corrosion resistance
    · Self-Nailing
    · Heavy Gauge wire construction for suspending copper & CPVC tubing
  •
    Read More

    Plastic Pipe Hanger Strap

    Description:
    As one of the most competitive hangers of company, our plastic pipe hanger straps are designed with quick and inexpensive way to hang pipe from joists or rafters. And they have received a great of popularity around the world, especially in North America. Also, they are made of polyethylene.



    Features:
    •    Alternating Holes Are 1/4″ And 1/8″
    •    Non-Corrosive, Non-Conductive, With Nail Holes
    •    Quick And Inexpensive Way To Hang Pipe From Joists Or Rafters
    •    1/8″ Nominal Hole Size
    •    Polyethylene
  •
    Read More

    DWV Pipe Hanger

    Description:
    Our galvanized DWV pipe hangers are ideal for hanging DWV pipe from overhead. The nail holes allow you to achieve the right length for your installation and allow for a quick installation.



    Features:
    · Material：Galvanized Steel
    · Size Range: 1-1/2″ Through 4″
    · Locking Screw Keeps Pipe Secure
    · Keyhole Design Provides Faster Installation
  •
    Read More

    Clevis Hanger

    Description:
    As one of the most competitive hangers of company, our clevis hangers can be used for light-duty and heavy-duty applications. And they have received a great of popularity around the world, especially in North America, South America, Middle East and Asia. Also, they could be customized according to your requirements, for example, they could be designed with rubber, insert or shield. And there are different surface treatments for your choice: Pre-galvanized, Zinc plated, epoxy and Green galvanized finish to meet your different levels’ anticorrosion needs.



    Features:
    · Light Duty and Heavy Duty
    · Material: Carbon Steel
    · Size Range: 1/2″ through 24″
    · Finish: Zinc Colored Epoxy Plated
    · Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
