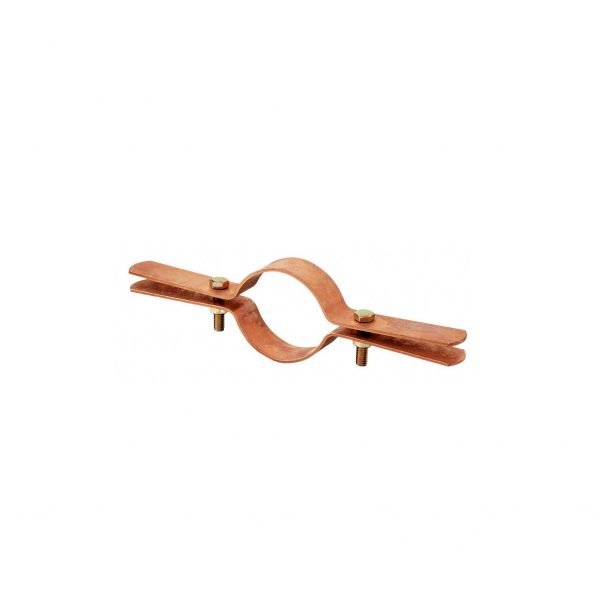

Products - Steel Riser Clamp (Copper Plated)

Steel Riser Clamp (Copper Plated)


Description:

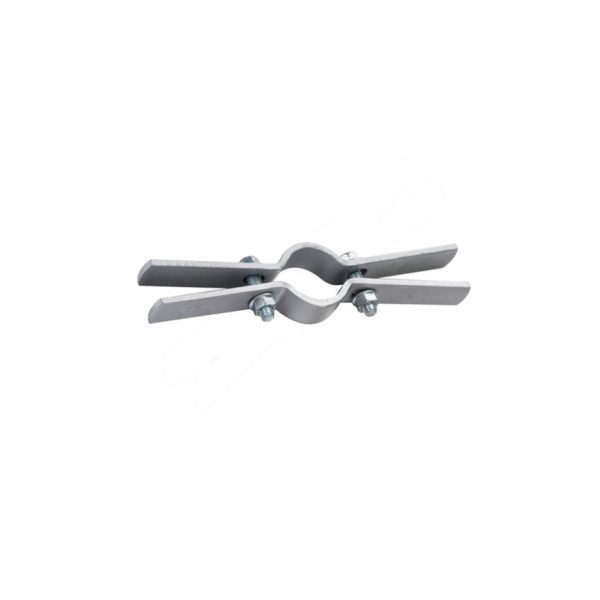

Our carbon steel riser clamp is for the support or steadying of vertical pipe risers. It is designed to hold tight to the pipe, transmitting the load to the structure through the ears on each end. When possible the clamp should be placed under a coupling, hub, or lugs, welded to the pipe. The riser clamps are compliant with UL & FM, federal specifications and manufacturers standardization society specifications.



Features:

· Riser Pipe Clamp For Vertical Steel Pipe
· Material: Carbon Steel
· Size Range: 1/2″ through 12″
· Finish: Zinc Colored Epoxy Plated
· Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58

Categories: ,
  • Technical Parameter



Material: SPCC Surface Treatment: Zinc plated/Epoxy/Green galvanized
Connection: Flange Structure: Vertical
Flexible or Rigid: Rigid Size:  1/2"- 12"
Standard: Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
