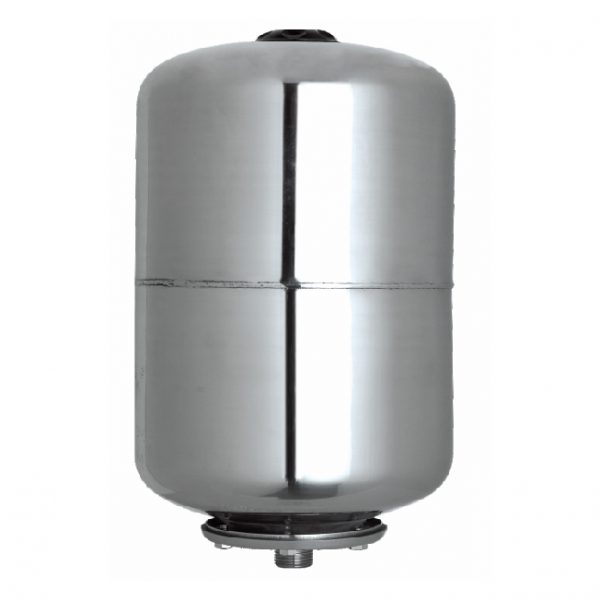

SVT Series
- Applications
-
- The pressure tank is suitable for pumps and water supply systems, with a fixed application of water butyl based membrane. These pressure tanks are made of carbon steel. The shape of the membrane is designed to avoid the stagnation of water in the tank and the growth of any bacteria.
- The pressure tank maintains a desired range of water pressure in the pipe system and stores amount of water needed. So you can immediately use water without manually turn on the pump. The pump system with the combination of pressure tank and pressure switch allows the pump to operate automatically in an infrequent way that the pump only runs when needed. So it also reduces the
amount of time the pump runs and prolongs the life of the pump. Using a suitable pressure tank can extend the pump life by up to 300%.
- Technical Parameters
- Replaceable membrane pressure tanks
Stainless steel
Working temperature:
Butyl: -20℃/99℃
EPDM: -20℃/99℃
Natural rubber: -0℃/77℃
| Model | Max. Pressure bar) |
Diameter (mm) |
Height (mm) |
Connector | Preset Pressure (bar) |
| SVT-3L | 6,8,10 | 170 | 235 | 1" | 1.5 |
| SVT-5L | 6,8,10 | 170 | 275 | 1" | 1.5 |
| SVT-8L | 6,8,10 | 200 | 328 | 1" | 1.5 |
| SVT-19L | 6,8,10 | 270 | 395 | 1" | 1.5 |
| SVT-24L | 6,8,10 | 270 | 460 | 1" | 1.5 |
