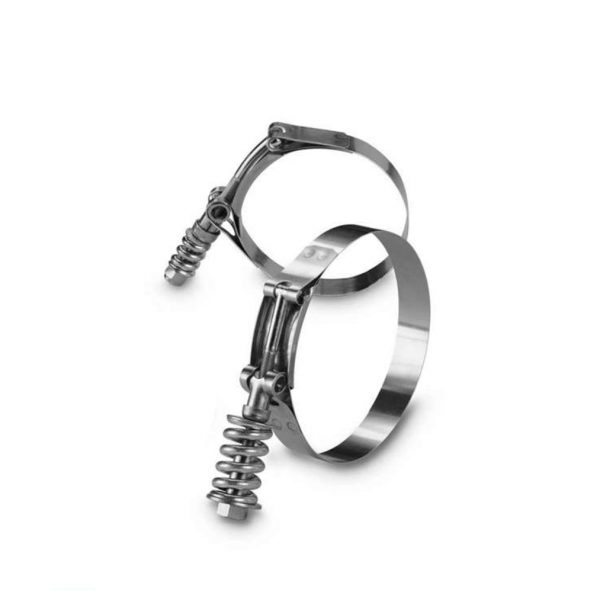

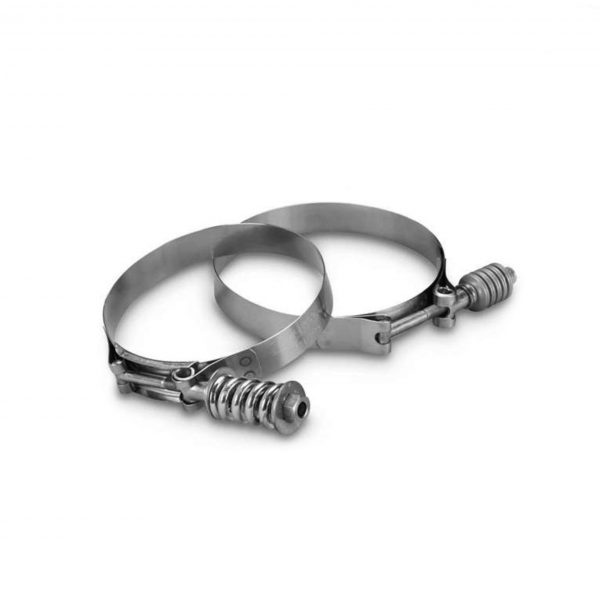

T-Bolt Spring Loaded Hose Clamp
Description:- Our T-Bolt Spring Loaded Clamps offer a high performing sealing solution in demanding applications with highly fluctuating temperatures and pressure. Our spring-loaded clamps automatically compensate for thermal expansion and contraction of hose or fitting connections to maintain uniform sealing pressure for a positive, reliable seal. The constant tension design helps prevent loose connections and leaks due to temperature fluctuations in critical applications.
- Features:
-
- AUTO ADJUSTING DIAMETER – Automatically compensates for thermal expansion of hose or fitting connections.
- SPRING LOADED CONSTANT TORQUE – Provides a reliable and accurate constant tight fit without needing adjustments.
- SMOOTH INNER BAND – Protects hoses and prevents failures caused by cuts and gouges that typical hose clamps can leave behind.
- HEAVY DUTY – Superior welded construction, high strength stainless steel band, liner and one piece trunnion.
- HEAVY EQUIPMENT APPLICATIONS – Ideal for Charge Air Cooling Systems and other applications for bus, truck and heavy-duty equipment.
- SPECIFICATION – Meets SAE J1508 for T-Bolt Clamps.
- MATERIAL – 300 series stainless steel band with zinc plated self-locking nut, bolt and spring
- Technical Parameter
| Material: 301 Stainless Steel | Surface Treatment: / |
| Connection: Flange | Structure: Vertical |
| Flexible or Rigid: Rigid | Size: 2"-12", Band Width: 3/4" |
| Standard: WRN internal standard with reference to UL and FM standards. | |
