Washing Machine Connector
- Material:
- Stainless Steel / Rubber / PVC
- Working temperature ranges -40 to 210F
- Certificate:
- NSF-61, AB-1953, cUPC
- Technical Parameter
| Length | Finish | Specifications | Fitting | Plating |

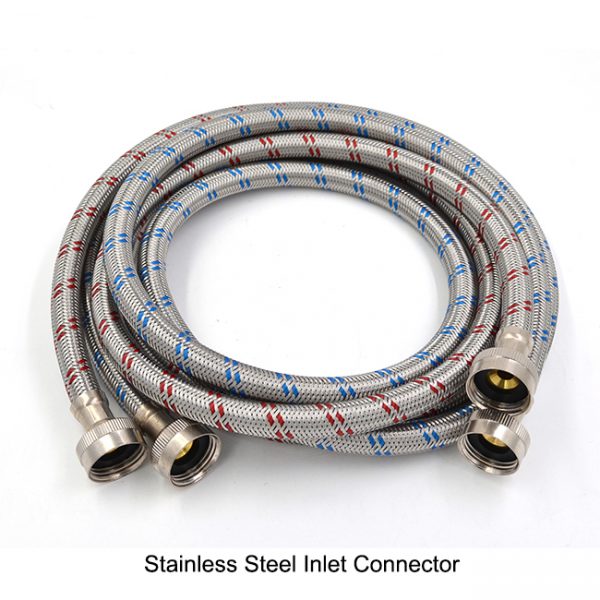

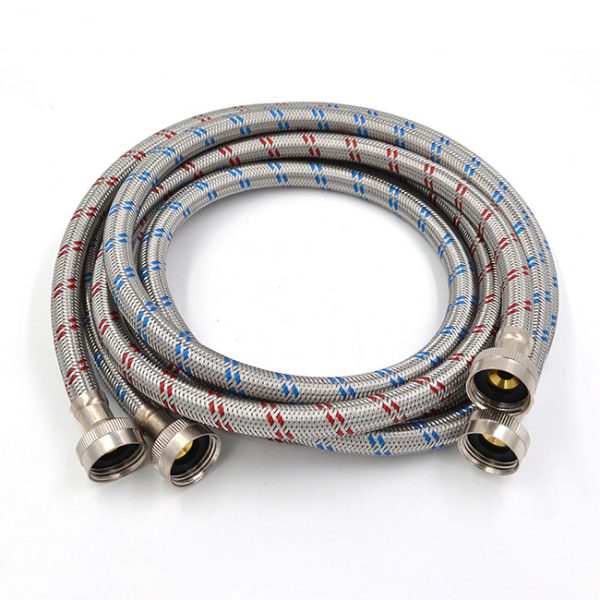

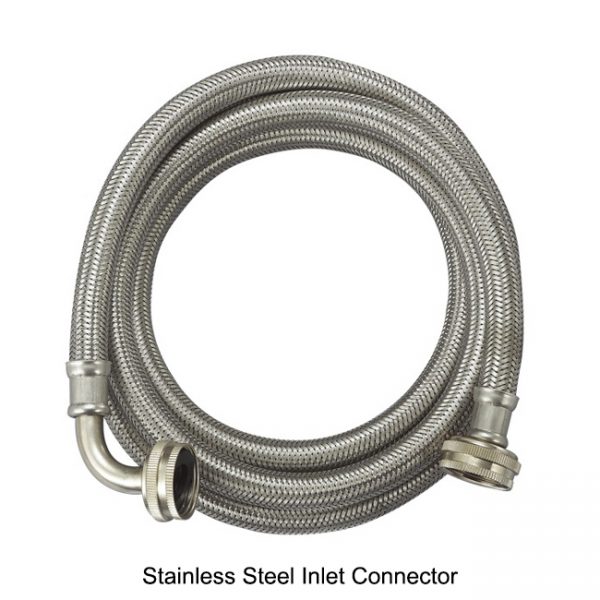

| 36", 48", 60", 72 " | Stainless Steel Inlet Hose | F3/4" x F3/4" elbow OD. 13.5mm 3/4"-11.5NH x 3/4"-11.5NH OD. 13.5mm/15mm/17mm 3/4"-11.5NH x 3/4"-11.5NH elbow OD. 13.5mm Double colors/Single Color |
Brass nuts, nipples and ferrules | Nickel/Pickling |

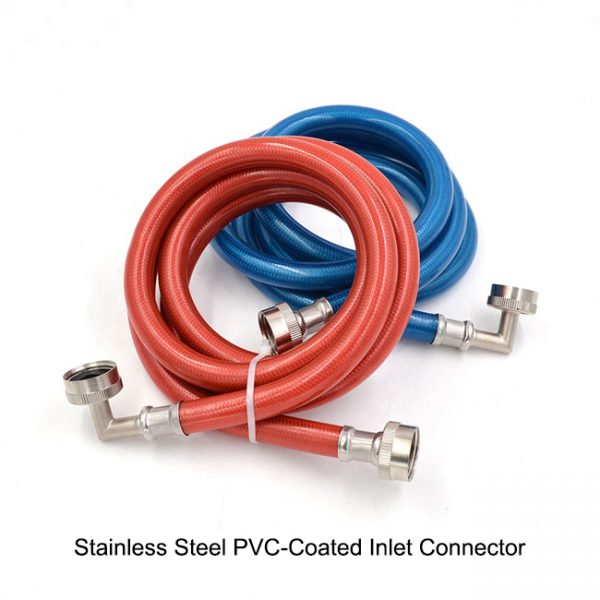

| Stainless steel Inlet Hose with PVC coated | 3/4"-11.5NH x 3/4"-11.5NH OD. 16mm 3/4"-11.5NH x 3/4"-11.5NH elbow OD. 16mm |
|||

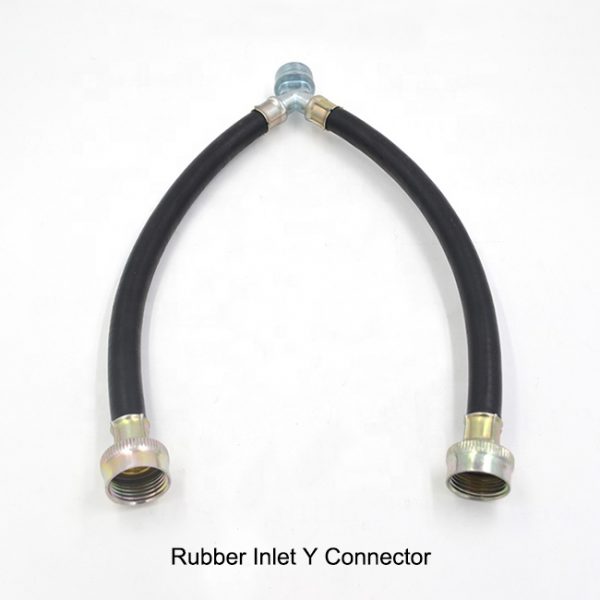

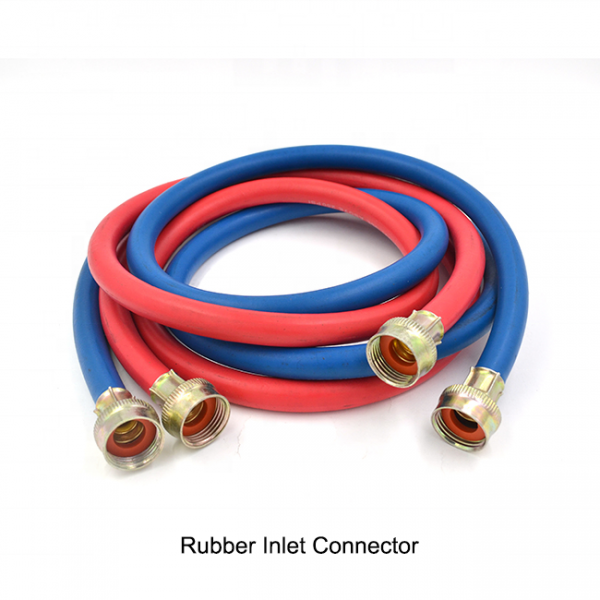

| Rubber Inlet Hose | 3/4"-11.5NH x 3/4"-11.5NH elbow 3/4"-11.5NH x 3/4"-11.5NH |
Brass nuts, nipples and ferrules | Nickel | |

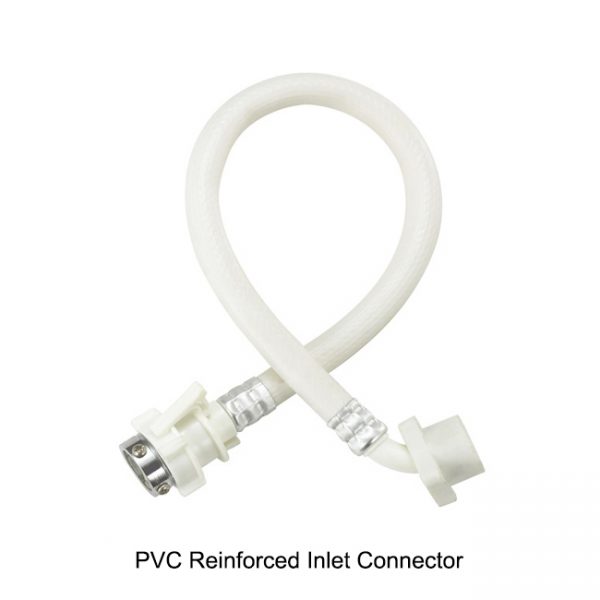

| PVC Reinforced Inlet Hose | F3/4" Delta Style x F3/4" elbow F3/4" x F3/4"elbow |
Plastic nuts, nipples and aluminum ferrules | - | |
| 4 1/2ft 6ft |

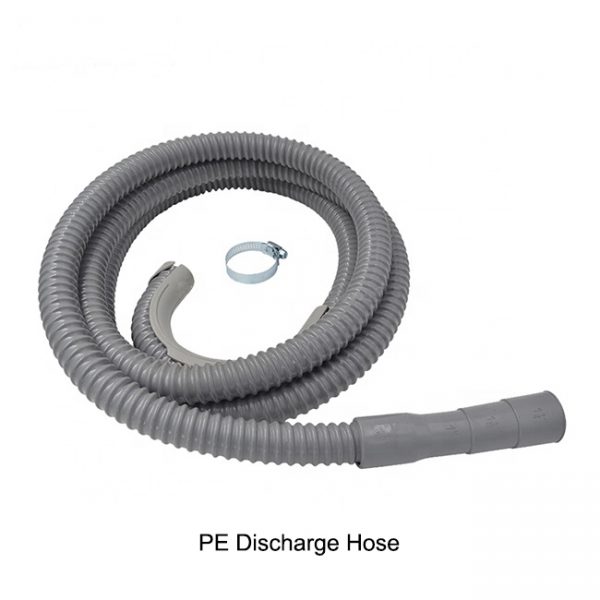

PE Discharge Hose | OD. 1" Fits Discharge1"-1 1/4" stub outs OD. 1" Fits Discharge1" stub outs OD. 3/4" Fits Discharge 3/4" stub outs |
- | - |
| 5ft 6ft |

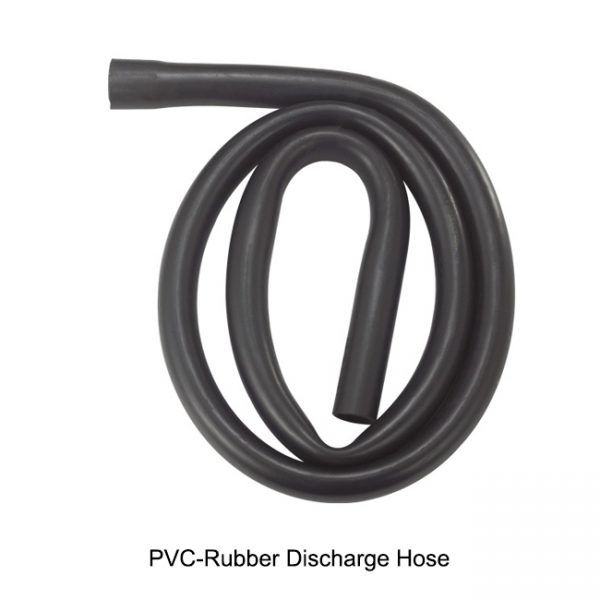

PVC-Rubber Discharge Hose | OD. 1" Fits Discharge1"-1 1/4" stub outs OD. 3/4" Fits Discharge 7/8"-1" stub outs |
- | - |

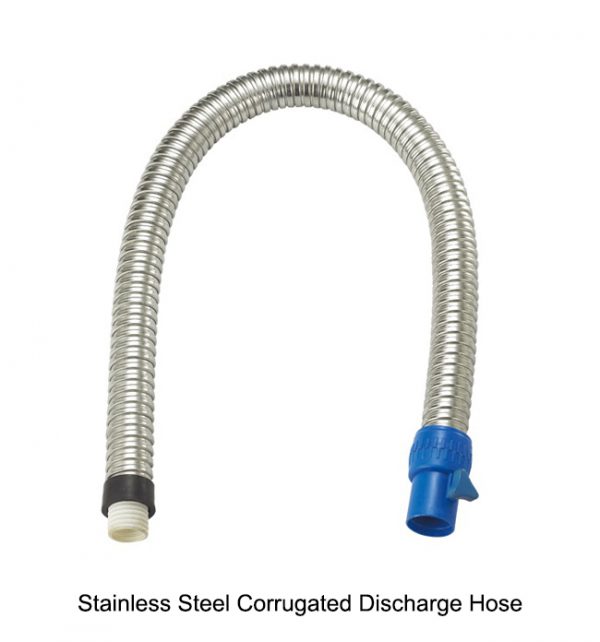

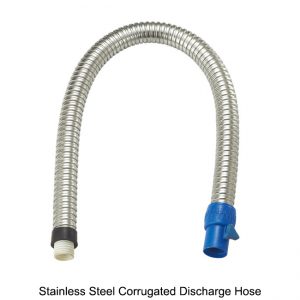

| 3ft | Stainless Steel Corrugated Discharge Hose | OD. 1" Fits Discharge1"-1 1/4" stub outs | - | - |
