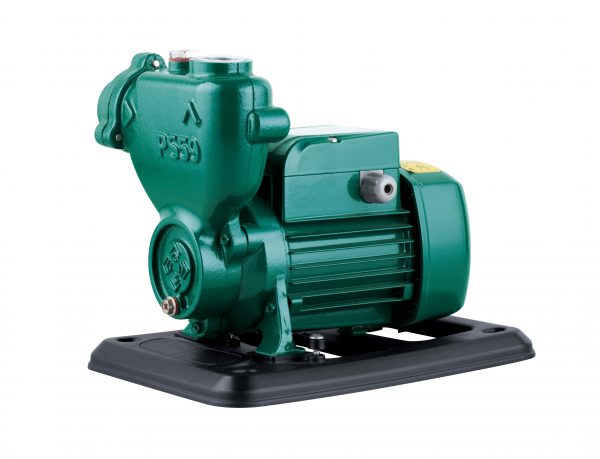

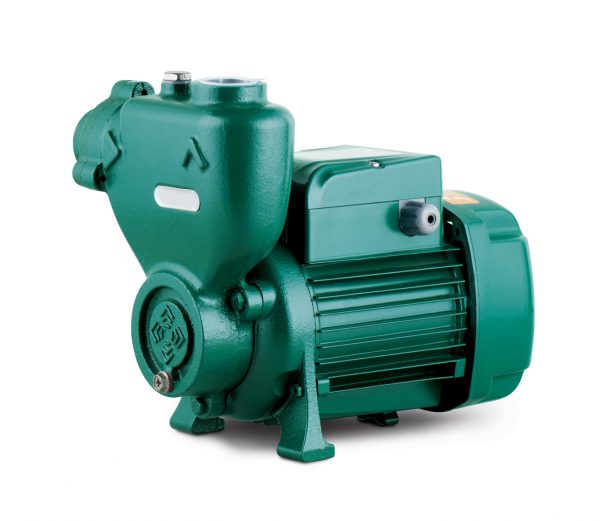

PS Series Self-priming Pump
- Applications
- Household water supply
Water supply system
Cooling system
Boost system
- Working Range
- Liquid: clean liquids without
suspended solids,non-aggressive
Liquid temperature: -10 °C and +60 °C
Ambient temperature up to +40 °C
Max. working pressure 10 bar
Continuous service S1
Insulation: B
Protection: IP 44
- Description
Description
Performance Data at n=2850r/min
| Model | Power | Current | Head Max. | Flow Max. | Optimal Working Point | Inlet/outlet | ||
| PS59 | 0.16HP | 0.125kW(P2) | 1.3A | 28m | 35L/min | 18-10m | 15-24L/min | 1″×1″ |
| PS60 | 0.45HP | 0.33kW | 1.6A | 36m | 42L/min | 24-15m | 15-24L/min | 1″×1″ |
| PS65 | 0.75HP | 0.55kW | 2.5A | 42m | 55L/min | 30-20m | 18-30L/min | 1″×1″ |
| PS70 | 1HP | 0.75kW | 3.6A | 48m | 68L/min | 36-25m | 20-36L/min | 1″×1″ |
Parts Information
| Model | PS59 | PS60 | PS65 | PS70 |
| Pump Body | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
| Enameled Wire | Copper | Copper | Copper | Copper |
| Front Cover Brass Coated | ※ | ○ | ○ | ○ |
| Impeller | Brass | Brass | Brass | Brass |
| Flame Retardant Terminal Board | Clip | ○ | ○ | ○ |
| Motor Shaft (S.S) | 2Cr13 | 2Cr13 | 2Cr13 | 2Cr13 |
| Mechanical Seal | 301-12 | 301-12 | 301-14 | 301-14 |
| Capacitor | 10μF/450V | 12μF/450V | 16μF/450V | 20μF/450V |
